OKAMOTO晶圓減薄GNX200BP研磨機

價格 1.00
評價 已有 0 條評價
人氣 已有 1127 人關注
數量
+-
庫存99999

商家資料

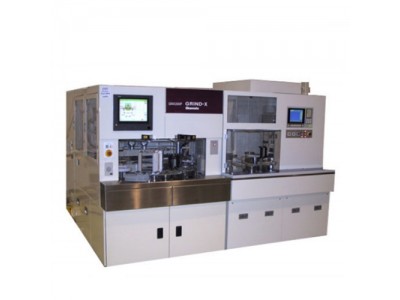

OKAMOTO晶圓減薄GNX200BP研磨機



OKAMOTO晶圓減薄GNX200BP研磨機概要
GNX200BP Wafer Grinding is a fully automatic continuous downfeed grinding machine. Wafers are handled through the machine by a robot, and load/unload arms. Two different stations are used for wafer cleaning after the final grind station. Chuck speed, grinding wheel, and grind spindle downfeed rate speeds can be used to manipulate grinder throughput, surface finish, and wheel life. A two-point in-process gauge measuring system controls wafer thickness under grind spindles 1 and 2. A three-point grind spindle angle adjustment mechanism is utilized for easily maintaining wafer profile (ttv); with the option a motorized adjustment. After completion at the grind station, the wafer transfers to Polish unit automatically. The local polishing unit removes subsurface damage for increased wafer die strength, and the ability to handle final thickness of 50 microns.
GNX200BP晶圓研磨機是一款全自動的連續向下進給研磨機。晶圓由機械手通過機器進行處理,并裝載/卸載臂。在最終研磨站之后,使用兩個不同的站進行晶片清潔。卡盤轉速,砂輪轉速和砂輪主軸下降速度可以用來控制砂輪的產量,表面光潔度和砂輪壽命。兩點制程量規測量系統控制磨削主軸1和2下的晶片厚度。三點磨削主軸角度調節機構用于輕松保持晶片輪廓(ttv);可選配電動調節裝置。在研磨站完成后,晶片將自動轉移到拋光單元。局部拋光單元消除了表面下的損壞,從而提高了晶片的芯片強度,并具有處理50微米最終厚度的能力。



了解更多:http://www.hapoin.com/Wafer_Grinding/gnx200bp.htm



OKAMOTO晶圓減薄GNX200BP研磨機相關產品:
衡鵬供應
OKAMOTO GDM300晶圓研磨/晶圓減薄/晶圓拋光/晶圓背拋/Wafer Grinding
